LiFePO4 Wall Mounted Battery with RS485 RS232 Communication and IP20 Rating for Solar Energy Storage

Name: LiFePO4 Wall Mounted Battery with RS485 RS232 Communication and IP20 Rating for Solar Energy Storage
Brand: Shenzhen Junext Power Technology Co., Ltd.
SKU: JN-LFP48100-BG
Availability: InStock

All Products

Residential Energy Storage Systems
(119)

Commercial Industrial BESS
(35)

Container BESS
(15)

Lead Acid Replacement
(18)

Battery Cells
(3)

Solar Inverter
(3)

Solar Panel Battery
(3)

Solar BESS Accessory
(2)

Battery Energy Storage Systems
(3)

I'm Online Chat Now

LiFePO4 Wall Mounted Battery with RS485 RS232 Communication and IP20 Rating for Solar Energy Storage

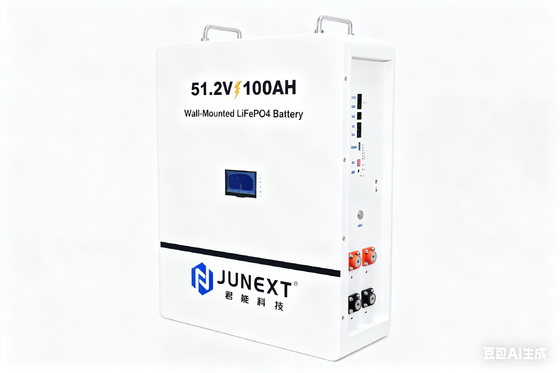

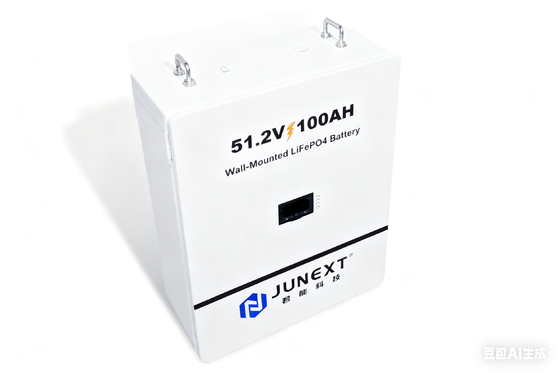

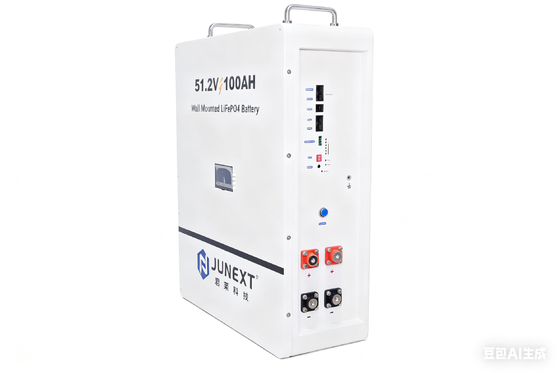

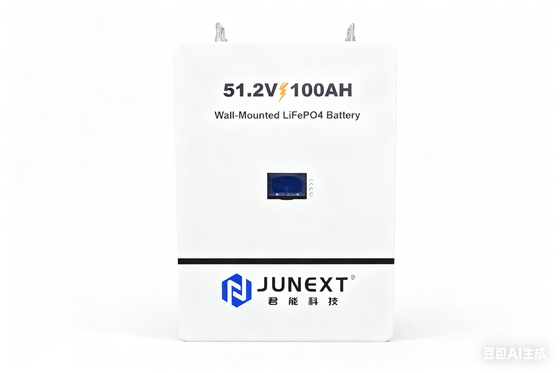

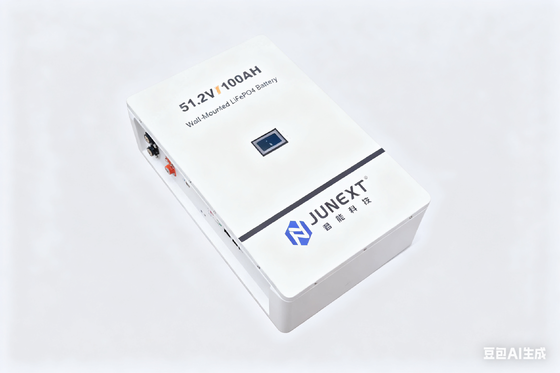

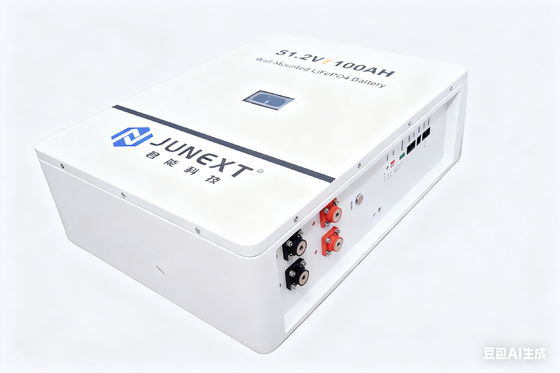

Large Image : LiFePO4 Wall Mounted Battery with RS485 RS232 Communication and IP20 Rating for Solar Energy Storage

Product Details:

Place of Origin:	shenzhen
Brand Name:	Junext
Certification:	ISO、UN38.3、CE、MSDS
Model Number:	JN-LFP48100-BG

Payment & Shipping Terms:

Minimum Order Quantity:	Low MOQ
Delivery Time:	30-60 day
Payment Terms:	T/T
Supply Ability:	200pcs/day

Contact Now Chat Now

LiFePO4 Wall Mounted Battery with RS485 RS232 Communication and IP20 Rating for Solar Energy Storage

Description

Battery Chemistry:	LiFePO4	Certifications:	CE, UL, TUV, IEC
Warranty:	5 Years	Voltage:	51.2V
Cycle Life:	6000 Cycles	Dimensions:	580450217mm
Communication Protocol:	CAN, RS485, RS232	Capacity:	5.12KWh
Highlight:	RS485 Communication Wall Mounted Battery , RS232 Communication Lithium Solar Energy Storage System , IP20 LiFePO4 Powerwall

LiFePO4 Solar Energy Storage System Battery

The Residential ESS Series is a premium energy storage solution designed for residential use, offering efficiency, reliability, and longevity. This system helps homeowners optimize energy consumption while reducing their carbon footprint.

Key Features

Wide operating temperature range (-10°C to 50°C) for reliable performance in various conditions
Available in 2.56KWh and 5.12KWh capacity options to match different energy needs
5-year warranty for long-term protection of your investment
2.5 KW power output for handling household energy demands
Lightweight design (28KG/54KG) for easy installation and maintenance
6000 cycle life for years of dependable service

Technical Specifications

Battery Energy Storage
Battery Chemistry	LiFePO4
Default Voltage	51.2V
Cell Capacity	100Ah
Capacity	5.12KWh
Max. Charging Voltage	58.4V
Discharge Cut-off	43.2V
Standard Charging Current	50A
Standard Discharging Current	50A
Max. Operation Current	100A
Dimensions (WDH)	580450217mm
Package Dimensions (WDH)	660510280mm
Net Weight	54KG
Gross Weight	57KG

General Parameters
Scalability	Max. 15 systems in parallel
Storage Conditions	10℃~45℃ (0℃~45℃ recommended) up to 90%RH, non-condensing
Operating Temperature	Charge: 0℃~45℃ \| Discharge: -10℃~45℃
Cooling	Natural Cooling
Cycle Life	6000 Cycles
Communication	CAN, RS485, RS232

System Characteristics
Battery Compliances	IEC62619:2017, EN IEC6100-6
Transportation Certification	UN38.3, MSDS, CE
Installation Method	Wall-Mounting
IP Rating	IP20

Applications

The Residential ESS Series is ideal for reducing electricity bills, storing solar energy, and providing backup power during outages. Certified with ISO, UN38.3, CE, and MSDS standards, it offers a safe and reliable energy solution compatible with most inverters.
