UN38.3 Certified 200Ah Wall Mounted Battery with CAN/RS485/RS232 Communication and CE Certification for Home Energy Storage

UN38.3 Certified 200Ah Wall Mounted Battery with CAN/RS485/RS232 Communication and CE Certification for Home Energy Storage
UN38.3 Certified 200Ah Wall Mounted Battery with CAN/RS485/RS232 Communication and CE Certification for Home Energy Storage
UN38.3 Certified 200Ah Wall Mounted Battery with CAN/RS485/RS232 Communication and CE Certification for Home Energy Storage UN38.3 Certified 200Ah Wall Mounted Battery with CAN/RS485/RS232 Communication and CE Certification for Home Energy Storage UN38.3 Certified 200Ah Wall Mounted Battery with CAN/RS485/RS232 Communication and CE Certification for Home Energy Storage

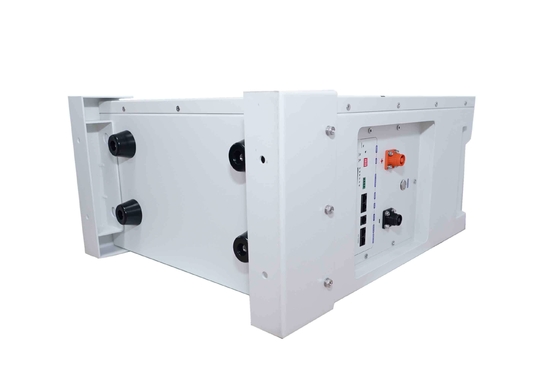

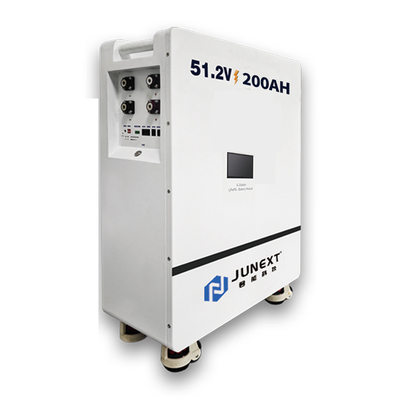

Large Image :  UN38.3 Certified 200Ah Wall Mounted Battery with CAN/RS485/RS232 Communication and CE Certification for Home Energy Storage

Product Details:
Place of Origin: shenzhen
Brand Name: Junext
Certification: UN38.3、MSDS、CE、
Model Number: JN-LFP48200-BG
Payment & Shipping Terms:
Delivery Time: 30-45 day
Supply Ability: 200pcs/day
Contact Now Chat Now

UN38.3 Certified 200Ah Wall Mounted Battery with CAN/RS485/RS232 Communication and CE Certification for Home Energy Storage

Description
Battery Chemistry: LiFePO4 Voltage: 51.2 V
Standard Charging Current(A): 100A Cycle Life: 6000 Cycles
Operating Temperature Range: -10°C To 50°C Net Weight: 95.5KG
IP Rating: IP30 Scalability: Max.15 Systems In Paralle
Highlight:

200ah Wall Mounted Battery

,

MSDS Wall Mounted Battery

,

lifepo4 battery 10kwh 100A

200Ah MSDS Wall Mounted Battery Home Energy Storage System Lifepo4 Battery 10kwh
High-Efficiency 200Ah 10KW LiFePO4 Class A Lithium Battery Wall-Mounted Battery for Home Energy Storage System
Our wall-mounted battery offers a cutting-edge solution for energy storage needs. This lithium battery features a standard charging current of 100A for efficient charging, with a rated energy capacity of 10.24kWh to support extended usage.
Certified with CE, UN38.3, and MSDS standards, this battery meets strict international performance and safety requirements, ensuring reliable operation for your energy storage applications.
The system offers exceptional scalability, supporting parallel connection of up to 15 units to expand your energy storage capacity as needed. Weighing just 95.5kg, this wall-mounted solution combines power with easy handling and installation.
Key Features
  • Product Name: Wall-Mounted Battery
  • Communication Protocols: CAN, RS485, RS232
  • Operating Temperature Range: -10°C to 50°C
  • IP Rating: IP30
  • Scalability: Up to 15 systems in parallel
  • Cycle Life: 6,000 Cycles
Technical Specifications
Technical Parameter Details
IP Rating IP30
Scalability Up to 15 systems in parallel
Voltage 51.2V
Operating Temperature Range -10°C to 50°C
Battery Chemistry Lithium Iron Phosphate (LiFePO4)
Net Weight 95.5kg
Standard Charging Current (A) 100A
Communication Protocols CAN, RS485, RS232
Dimensions (Width * Length * Height) 600 * 470 * 281mm
Cycle Life 6,000 Cycles
Applications
The Junext JN-LFP48200-BG Wall-Mounted Battery offers versatile applications across multiple scenarios:
Electric Vehicles: Provides reliable power for e-bikes and electric motorcycles with robust design and multiple communication protocols for seamless integration.
Home Energy Storage: Delivers efficient backup power for residential properties with its 100A charging current and compact design.
Custom Battery Solutions: Supports scalable configurations for manufacturers needing adaptable energy storage systems.
UN38.3 Certified 200Ah Wall Mounted Battery with CAN/RS485/RS232 Communication and CE Certification for Home Energy Storage 0

Tag:

lifepo4 battery storage,

Residential Energy Storage System,

solar energy storage battery
