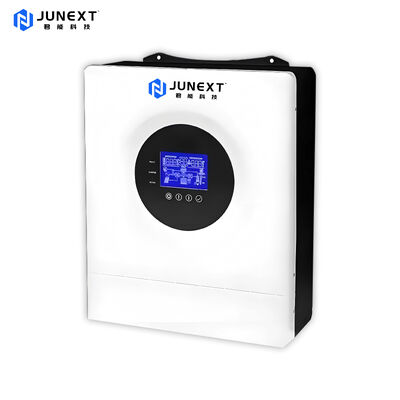

5KW 6.2kw 8kw 10kw 12kw Parallel Hybrid Solar Inverter for Home Use Off Grid Energy Storage System Solar Power Inverter

5KW 6.2kw 8kw 10kw 12kw Parallel Hybrid Solar Inverter for Home Use Off Grid Energy Storage System Solar Power Inverter
5KW 6.2kw 8kw 10kw 12kw Parallel Hybrid Solar Inverter for Home Use Off Grid Energy Storage System Solar Power Inverter
5KW 6.2kw 8kw 10kw 12kw Parallel Hybrid Solar Inverter for Home Use Off Grid Energy Storage System Solar Power Inverter 5KW 6.2kw 8kw 10kw 12kw Parallel Hybrid Solar Inverter for Home Use Off Grid Energy Storage System Solar Power Inverter 5KW 6.2kw 8kw 10kw 12kw Parallel Hybrid Solar Inverter for Home Use Off Grid Energy Storage System Solar Power Inverter 5KW 6.2kw 8kw 10kw 12kw Parallel Hybrid Solar Inverter for Home Use Off Grid Energy Storage System Solar Power Inverter 5KW 6.2kw 8kw 10kw 12kw Parallel Hybrid Solar Inverter for Home Use Off Grid Energy Storage System Solar Power Inverter

Large Image :  5KW 6.2kw 8kw 10kw 12kw Parallel Hybrid Solar Inverter for Home Use Off Grid Energy Storage System Solar Power Inverter

Product Details:
Place of Origin: shenzhen
Brand Name: JUNEXT
Certification: ISO、UN38.3、CE、MSDS
Model Number: JN-E-SUN 6.2KVA/48V
Payment & Shipping Terms:
Minimum Order Quantity: Low MOQ
Payment Terms: T/T
Supply Ability: 200pcs/day
Contact Now Chat Now

5KW 6.2kw 8kw 10kw 12kw Parallel Hybrid Solar Inverter for Home Use Off Grid Energy Storage System Solar Power Inverter

Description
Highlight:

5KW hybrid solar inverter for home

,

off-grid solar power inverter 12KW

,

parallel solar inverter energy storage

5KW 6.2kw 8kw 10kw 12kw Parallel Hybrid Solar Inverter for Home Use Off Grid Energy Storage System Solar Power Inverter


5KW 6.2kw 8kw 10kw 12kw Parallel Hybrid Solar Inverter for Home Use Off Grid Energy Storage System Solar Power Inverter 0
Pure sine wave Hybrid on&offinverter an feed to grid
Optional local WiFi and GPRS for i0s and AndroidInverteroperation with or without battery
Build-in Lithium battery automatic activation
Build-in 120A MPPT solar charge controller
High PVinput voltage Rang (90~450VDC)
Dual output L1/L2
Optional BMS suitable for 4.2K,6.2K,10.2K,including BMS
User-friendly LcD operation
Enhanced charging power
Batteryindependent design
5KW 6.2kw 8kw 10kw 12kw Parallel Hybrid Solar Inverter for Home Use Off Grid Energy Storage System Solar Power Inverter 15KW 6.2kw 8kw 10kw 12kw Parallel Hybrid Solar Inverter for Home Use Off Grid Energy Storage System Solar Power Inverter 2
Product Parameters

New Model

 JN-E-SUN 6.2KVA/48V
Max.PV Power 6500W
Rated Power 6200VA
Max.Charge Current 100A
Battery
Battery Voltage 48VDC
Floating Charge Voltage 54VDC
Overcharge Protection 63VDC
Battery Type

Compatible With GEL,AGM,Lithium battery

Grid Input
Voltage

230VAC
Selectable Voltage Range

170-280VAC(For Personal Computers),90-280 VAC (For Home Appliances)
Frequency Range

50 Hz/60 Hz (Auto sensing)
Efficiency(AC Mode)

98%

Ac Output
AC Voltage Regulation(Batt.Mode)

230 VAC 士 5%
Surge Power

12400VA
Efficiency (Peak)

90%-94%
Transfer Time

10 ms(For Personal Computers);20 ms (For Home Appliances)
Waveform

Pure sine mave

Dual Loads Acoutput
Full Load

6200VA
Maximum Main Load

6200VA
Maximum Second Load(Battery Mode)

2100W
Main Load Cut Off Voltage

44VCD
Main Load Retum Voltage

54VCD

Solar Charger&Ac Charger
Solar ChargerType

MPPT
Maximum PV Array Power

6500W
Max. input Current

27A
MPPT Range @ Operating Voltage

90-450VDC
Maximum PV Aray Open Circuit Vollage

500 VDC
Maximum Solar Charge Current

100A
Maximum Ac Charge Curent

100A
Maximum Charge Curent

100A
Physical
Packing Dimension,D*W*H(mm)

543*394*204
Net Weight (kg)

10.5
Communication interface

USBIRS232/WIFI/GPRS

Operating Environment
Humidity

5% to 95%6 Relative Humidity(Non-condensing
Operaling Temperature

-10℃ to 50℃
Storage Temperature

-10℃ to 50℃

5KW 6.2kw 8kw 10kw 12kw Parallel Hybrid Solar Inverter for Home Use Off Grid Energy Storage System Solar Power Inverter 3


5KW 6.2kw 8kw 10kw 12kw Parallel Hybrid Solar Inverter for Home Use Off Grid Energy Storage System Solar Power Inverter 4

5KW 6.2kw 8kw 10kw 12kw Parallel Hybrid Solar Inverter for Home Use Off Grid Energy Storage System Solar Power Inverter 5





  • Q: What is a 4.5KVA 24V inverter and what does it do?

    A: It is a power conversion device that converts 24V DC power (from batteries) to AC power (110V/220V). It powers home appliances, RV devices, and off-grid equipment.

    • Q: How to install a 4.5KVA 24V inverter?

      A: Connect the inverter’s DC input to 24V batteries (red to positive, black to negative), then connect AC output to loads. Follow the manual for safe wiring.

    • Q: Do I need professional help for installation?

      A: Basic off-grid installation can be done by yourself, but grid-connected setups (with transfer switches) require certified electricians to meet local standards.

    • Q: Is it compatible with solar charge controllers?

      A: Yes. It works with most 24V solar charge controllers (PWM/MPPT) to form a complete solar off-grid system.

    • Q: What cable size is needed for DC input?

      A: Use 4AWG-6AWG DC cables (depending on distance) for 24V input to avoid voltage drop and ensure stable performance.

    • Q: Can it be mounted on walls or floors?

      A: Yes. It has mounting holes for wall/floor installation, saving space and keeping the device stable.

    • Q: Is it compatible with 110V and 220V AC devices?

      A: Some models support dual AC output (110V/220V), while others are single-voltage. Check the model; we offer both options for global use.

    • Q: Can it connect with multiple batteries in series/parallel?

      A: It’s designed for 24V systems. You can connect batteries in series (to get 24V) or parallel (to increase capacity) as long as total voltage is 24V.

    • Q: Does it need a separate fuse or circuit breaker?

      A: Yes. Install a 150A-200A DC fuse between the inverter and batteries to protect against short circuits.
