6.2KVA Solar Inverter 10200VA 160A Solar Storage Inverter

6.2KVA Solar Inverter 10200VA 160A Solar Storage Inverter
6.2KVA Solar Inverter 10200VA 160A Solar Storage Inverter

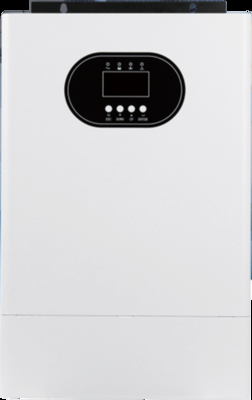

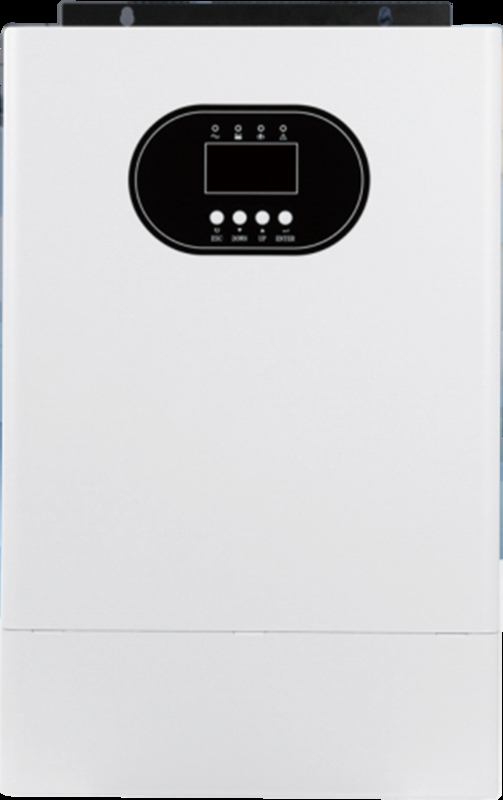

Large Image :  6.2KVA Solar Inverter 10200VA 160A Solar Storage Inverter

Product Details:
Place of Origin: shenzhen,guangdong
Brand Name: junext
Model Number: JN-E-SUN 6.2KVA
Contact Now Chat Now

6.2KVA Solar Inverter 10200VA 160A Solar Storage Inverter

Description
Highlight:

6.2KVA Solar Inverter

,

10200VA Solar Inverter

,

160A solar storage inverter

JN-E-SUN 6.2KVA

Product Parameters
New Model JN-E-SUN 10.2KVA/48V
Max.PV Power 10200W
Rated Power 10200VA
Max.Charge Current 160A
Battery
Battery Voltage 48VDC
Floating Charge Voltage 54VDC
Overcharge Protection 63VDC
Battery Type Compatible With GEL,AGM,Lithium battery
Grid Input
Voltage 230VAC
Selectable Voltage Range 170-280VAC(For Personal Computers),90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
Efficiency(AC Mode) 98%
Ac Output
AC Voltage Regulation(Batt.Mode) 230 VAC 士 5%
Surge Power 20400VA
Efficiency (Peak) 90%-94%
Transfer Time 10 ms(For Personal Computers);20 ms (For Home Appliances)
Waveform Pure sine mave
Dual Loads Acoutput
Full Load 10200VA
Maximum Main Load 10200VA
Maximum Second Load(Battery Mode) 3400W
Main Load Cut Off Voltage 44VCD
Main Load Retum Voltage 54VCD
Solar Charger&Ac Charger
Solar ChargerType MPPT
Maximum PV Array Power 5400W*2
Max. input Current 18A
MPPT Range @ Operating Voltage 90-450VDC
Maximum PV Aray Open Circuit Vollage 500 VDC
Maximum Solar Charge Current 160A
Maximum Ac Charge Curent 140A
Maximum Charge Curent 160A
Physical
Packing Dimension,D*W*H(mm) 700*510*232
Net Weight (kg) 19.1
Communication interface USBIRS232/WIFI/GPRS
Operating Environment
Humidity 5% to 95%6 Relative Humidity(Non-condensing
Operaling Temperature -10℃ to 50℃
Storage Temperature -10℃ to 50℃

6.2KVA Solar Inverter 10200VA 160A Solar Storage Inverter 0

Tag:

solar storage inverter,

Energy Storage Inverter,

6.2KVA Solar Inverter
