JUNEXT 51.2V 200Ah Wall-Mounted 10kWh Home Solar Energy Storage System Lifepo4 Battery Inverter 48V 100Ah 200AH 5kWh 7.68kWh Options
Technical Parameters:
| lithium battery price |
|
|
|
|
| Battery Energy Storage |
1Modules |
2Modules |
3Modules |
4Modules |
| Battery Chemistry |
LiFePO4 |
| Default Volage(V) |
51.2V |
| Cell Capacity(Ah) |
100Ah |
200Ah |
300Ah |
400Ah |
| Capacity |
5.12KWh |
10.24KWh |
15.36KWh |
20.48KWh |
| Max.Charging Voltagy(V) |
58.4V |
| Discharge Cut-off(V) |
43.2V |
| Standard Charging Current(A) |
50A |
| Standard Discharging Current(A) |
50A |
| Max.Operation Current(A) |
100A |
|
Dimensions(W*D*H)
|
600*450*445.5
|
600*450*627
|
600*450*808.5
|
600*450*990
|
|
Package Dimension(W*D*H)
|
650*500*270 |
|
Net Weight
Gross Weight
|
50KG
52KG
|
100KG
104KG
|
150KG
156KG
|
200KG
208KG
|
|
General Parameters
|
| Scalability |
Max.15 systems in paeallel
|
| Storage Conditions |
10℃~45℃(0℃~45℃ Recommended)up to 90%RH,non-condensing Inital SOC:30%
|
| Operating Temperature |
Chare:0℃~45℃ Discharge:-10℃~45℃
|
| Cooling |
Natural Cooling |
| Cycle Life |
6000 Cycles |
| Communication |
CAN,RS485,RS232 |
| System Characteristic |
| Battery Compliances |
IEC62619:2017,EN IEC6100-6 |
| Transportation Certification |
UN38.3,MSDS,CE |
| Installation Method |
Floor Mounting |
| IP Rating |
IP30 |

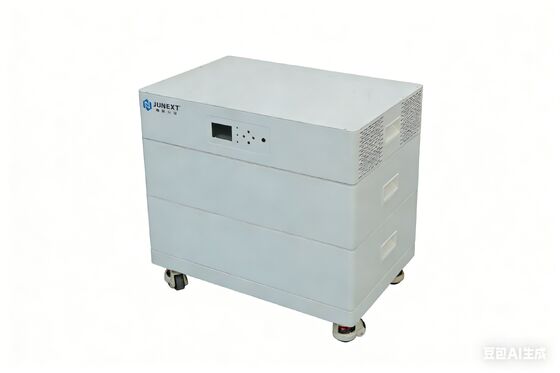

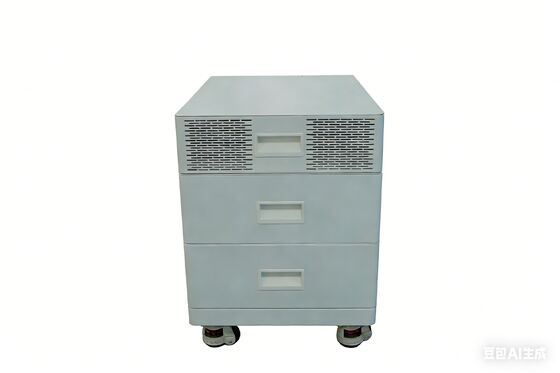

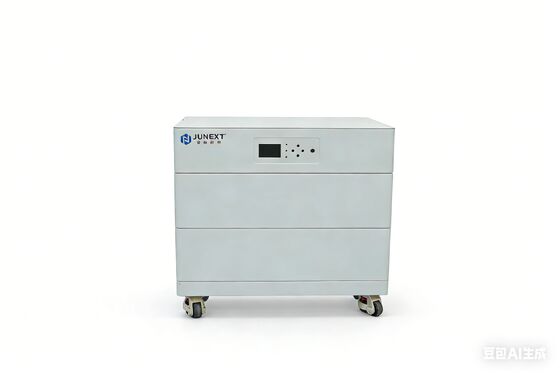

Product Description:
This Floor-Mounted Lithium Battery comes with an IP30 protection rating, offering outstanding resistance to dust and moisture to sustain peak performance and longevity even in harsh operating environments. It performs exceptionally well in storing surplus solar energy and serving as an emergency backup power supply, with a 5.12KWh nominal energy capacity that meets all household energy needs, helping to cut down grid power reliance and tap into the full potential of solar panels. Constructed with LiFePO4 battery cells, it delivers superior safety, stability and efficiency, coupled with an extended cycle life, fast charging speed and high energy density—qualities that make it an ideal option for residential solar energy storage. The battery is compatible with CAN, RS485 and RS232 communication protocols, allowing seamless integration with inverters and monitoring equipment for real-time supervision and optimization of the energy storage system. Its integrated natural cooling system regulates battery cell temperature, ensuring consistent operation and an extended service life even during periods of high energy consumption. As a flexible floor-mounted home and solar lithium battery, it is a sturdy, high-performance solution for homeowners looking to enhance their energy independence and maximize solar energy utilization.
Customization:
Product Customization Services for Floor-Standing Lithium Batteries
Brand Name: Junext
Place of Origin: Shenzhen
Certification: ISO, UN38.3, CE, MSDS
Minimum Order Quantity: Support low MOQ
Delivery Time: 30–60 working days
Payment Terms: T/T accepted
Supply Capacity: 200 pieces per day
Transportation Certification: UN38.3, MSDS, CE
Battery Compliance Standards: IEC62619:2017, ENIEC61000-6
Default Voltage: 51.2V
Storage Conditions: -10°C to 45°C
Cycle Life: 6000 charge-discharge cycles
Keywords: Floor Mounted Home Lithium Battery, Home energy storage on wheels, Floor Mounted Solar Battery
FAQ:
Q: What is the brand name of the Floor-Standing Lithium Battery?
A: The brand name is Junext.
Q: Where is the Floor-Standing Lithium Battery manufactured?
A: The product is manufactured in Shenzhen.
Q: What certifications does the Floor-Standing Lithium Battery have?
A: The product is certified with ISO, UN38.3, CE, and MSDS.
Q: What is the minimum order quantity for the Floor-Standing Lithium Battery?
A: The product has a low MOQ.
Q: What are the payment terms for purchasing the Floor-Standing Lithium Battery?
A: The payment terms are T/T.
