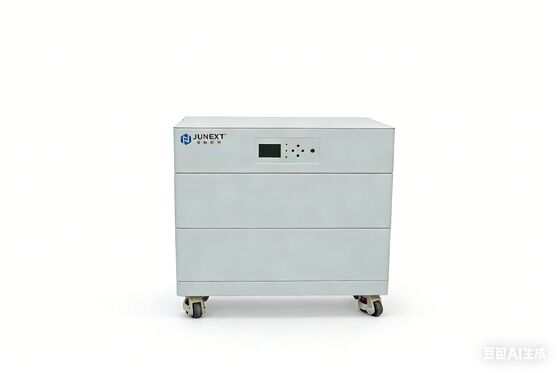

LP 10kwh Wall-Mounted 51.2 V 200AH Grade a LiFePO4 Battery

LP 10kwh Wall-Mounted 51.2 V 200AH Grade a LiFePO4 Battery
LP 10kwh Wall-Mounted 51.2 V 200AH Grade a LiFePO4 Battery LP 10kwh Wall-Mounted 51.2 V 200AH Grade a LiFePO4 Battery LP 10kwh Wall-Mounted 51.2 V 200AH Grade a LiFePO4 Battery LP 10kwh Wall-Mounted 51.2 V 200AH Grade a LiFePO4 Battery

Large Image :  LP 10kwh Wall-Mounted 51.2 V 200AH Grade a LiFePO4 Battery

Product Details:
Place of Origin: shenzhen
Brand Name: Junext
Certification: ISO、UN38.3、CE、MSDS
Model Number: JN-LFP48100-C
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Delivery Time: 30-60 day
Payment Terms: T/T,L/C,D/A,D/P
Supply Ability: 200pcs/day
Contact Now Chat Now

LP 10kwh Wall-Mounted 51.2 V 200AH Grade a LiFePO4 Battery

Description
Battery Chemistry: LiFePO4 Certifications: CE, UL, TUV, IEC
Warranty: 5 Years Voltage: 51.2V
Cycle Life: 6000 Cycles Dimensions: 650*500*270mm
Communication Protocol: CAN, RS485, RS232 Capacity: 5.12KWh
Highlight:

10kWh wall-mounted LiFePO4 battery

,

51.2V 200AH lithium battery

,

Grade A wall-mounted energy storage

JUNEXT LP 10kwh Wall-Mounted 51.2 V 200AH Grade a LiFePO4 Battery
Technical Parameters:
Battery Energy Storage
Battery Energy Storage 1Modules 2Modules 3Modules 4Modules
Battery Chemistry LiFePO4
Default Volage(V) 51.2V
Cell Capacity(Ah) 100Ah 200Ah 300Ah 400Ah
Capacity 5.12KWh 10.24KWh 15.36KWh 20.48KWh
Max.Charging Voltagy(V) 58.4V
Discharge Cut-off(V) 43.2V
Standard Charging Current(A) 50A
Standard Discharging Current(A) 50A
Max.Operation Current(A) 100A

Dimensions(W*D*H)

600*450*445.5

600*450*627

600*450*808.5

600*450*990

Package Dimension(W*D*H)

 650*500*270

Net Weight

Gross Weight

50KG

52KG

100KG

104KG

150KG

156KG

200KG

208KG

General Parameters
Scalability

Max.15 systems in paeallel
Storage Conditions

10℃~45℃(0℃~45℃ Recommended)up to 90%RH,non-condensing Inital SOC:30%
Operating Temperature

Chare:0℃~45℃     Discharge:-10℃~45℃
Cooling Natural Cooling
Cycle Life 6000 Cycles
Communication CAN,RS485,RS232
System Characteristic
Battery Compliances IEC62619:2017,EN IEC6100-6
Transportation Certification UN38.3,MSDS,CE
Installation Method Floor Mounting
IP Rating IP30
Product Description:

Boasting an IP30 protection rating, this Floor-Standing Lithium Battery delivers strong dust and moisture resistance, ensuring top performance and a long service life even in harsh environments. Ideal for storing solar panel surplus energy or serving as a reliable backup power source, it meets diverse residential energy needs with a 5.12KWh nominal energy capacity, cutting grid reliance and maximizing solar benefits. Powered by LiFePO4 chemistry, it offers superior safety, stability and efficiency, plus long cycle life, fast charging and high energy density—perfect for home energy storage. Equipped with CAN, RS485, RS232 protocols, it integrates seamlessly with inverters and monitors for real-time energy system control. Its natural cooling system regulates cell temperature, ensuring stable operation and extended lifespan even during peak demand. A comprehensive solution for floor mounted home/solar battery needs, it’s a smart investment for homeowners pursuing solar energy benefits and energy independence.

LP 10kwh Wall-Mounted 51.2 V 200AH Grade a LiFePO4 Battery 0

LP 10kwh Wall-Mounted 51.2 V 200AH Grade a LiFePO4 Battery 1

LP 10kwh Wall-Mounted 51.2 V 200AH Grade a LiFePO4 Battery 2



LP 10kwh Wall-Mounted 51.2 V 200AH Grade a LiFePO4 Battery 3
Customization:

Product Customization Services for the Floor-Standing Lithium Battery:
Brand Name: Junext
Place of Origin: Shenzhen
Certification: ISO, UN38.3, CE, MSDS
Minimum Order Quantity: Low MOQ
Delivery Time: 30-60 days
Payment Terms: T/T
Supply Ability: 200pcs/day
Transportation Certification: UN38.3, MSDS, CE
Battery Compliances: IEC62619:2017, ENIEC61000-6
Default Voltage: 51.2V
Storage Conditions: -10°C to 45°C
Cycle Life: 6000 Cycles
Keywords: Floor Mounted Home Lithium Battery, Home energy storage on wheels, Floor Mounted Solar Battery

LP 10kwh Wall-Mounted 51.2 V 200AH Grade a LiFePO4 Battery 4

LP 10kwh Wall-Mounted 51.2 V 200AH Grade a LiFePO4 Battery 5

FAQ:

Q: What is the brand name of the Floor-Standing Lithium Battery?
A: The brand name is Junext.
Q: Where is the Floor-Standing Lithium Battery manufactured?
A: The product is manufactured in Shenzhen.
Q: What certifications does the Floor-Standing Lithium Battery have?
A: The product is certified with ISO, UN38.3, CE, and MSDS.
Q: What is the minimum order quantity for the Floor-Standing Lithium Battery?
A: The product has a low MOQ.
Q: What are the payment terms for purchasing the Floor-Standing Lithium Battery?
A: The payment terms are T/T.
