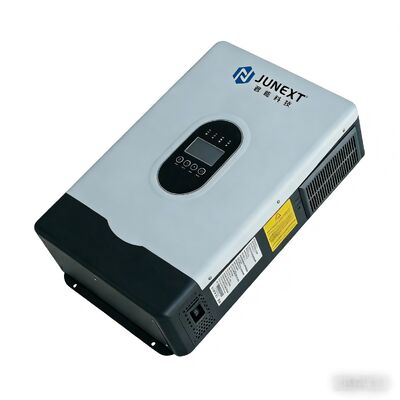

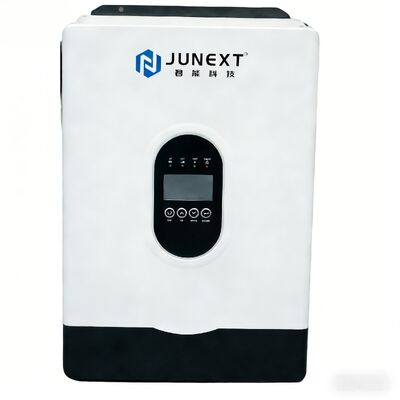

Junextpower Solis solar 12kw 16KW Single Phase 220V EU Voltage Hybrid Solar Inverter Energy Storage MPPT Inverters

Junextpower Solis solar 12kw 16KW Single Phase 220V EU Voltage Hybrid Solar Inverter Energy Storage MPPT Inverters
Junextpower Solis solar 12kw 16KW Single Phase 220V EU Voltage Hybrid Solar Inverter Energy Storage MPPT Inverters Junextpower Solis solar 12kw 16KW Single Phase 220V EU Voltage Hybrid Solar Inverter Energy Storage MPPT Inverters

Large Image :  Junextpower Solis solar 12kw 16KW Single Phase 220V EU Voltage Hybrid Solar Inverter Energy Storage MPPT Inverters

Product Details:
Place of Origin: shenzhen
Brand Name: JUNEXT
Certification: ISO、UN38.3、CE、MSDS
Model Number: JN-E-SUN 6.2KVA/48V
Payment & Shipping Terms:
Minimum Order Quantity: Low MOQ
Payment Terms: ,T/T
Supply Ability: 200pcs/day
Contact Now Chat Now

Junextpower Solis solar 12kw 16KW Single Phase 220V EU Voltage Hybrid Solar Inverter Energy Storage MPPT Inverters

Description
Highlight:

12kw hybrid solar inverter

,

16kw single phase inverter

,

solar inverter with MPPT

Junextpower Solis solar 12kw 16KW Single Phase 220V EU Voltage Hybrid Solar Inverter Energy Storage MPPT Inverters


Junextpower Solis solar 12kw 16KW Single Phase 220V EU Voltage Hybrid Solar Inverter Energy Storage MPPT Inverters 0
Pure sine wave hybrid on-grid/off-grid inverter with grid-tie function

Optional local WiFi & GPRS connectivity, compatible with iOS and Android devices

Supports inverter operation in both battery and battery-free modes

Integrated automatic activation function for lithium batteries

Built-in 120A MPPT solar charge controller

Wide PV input voltage range (90–450VDC)

Dual output channels (L1/L2)

Optional BMS available for 4.2K, 6.2K and 10.2K models, BMS included as an option

User-friendly LCD operation interface

Boosted charging power performance
Junextpower Solis solar 12kw 16KW Single Phase 220V EU Voltage Hybrid Solar Inverter Energy Storage MPPT Inverters 1Junextpower Solis solar 12kw 16KW Single Phase 220V EU Voltage Hybrid Solar Inverter Energy Storage MPPT Inverters 2
Product Parameters

New Model

 JN-E-SUN 6.2KVA/48V
Max.PV Power 6500W
Rated Power 6200VA
Max.Charge Current 100A
Battery
Battery Voltage 48VDC
Floating Charge Voltage 54VDC
Overcharge Protection 63VDC
Battery Type

Compatible With GEL,AGM,Lithium battery

Grid Input
Voltage

230VAC
Selectable Voltage Range

170-280VAC(For Personal Computers),90-280 VAC (For Home Appliances)
Frequency Range

50 Hz/60 Hz (Auto sensing)
Efficiency(AC Mode)

98%

Ac Output
AC Voltage Regulation(Batt.Mode)

230 VAC 士 5%
Surge Power

12400VA
Efficiency (Peak)

90%-94%
Transfer Time

10 ms(For Personal Computers);20 ms (For Home Appliances)
Waveform

Pure sine mave

Dual Loads Acoutput
Full Load

6200VA
Maximum Main Load

6200VA
Maximum Second Load(Battery Mode)

2100W
Main Load Cut Off Voltage

44VCD
Main Load Retum Voltage

54VCD

Solar Charger&Ac Charger
Solar ChargerType

MPPT
Maximum PV Array Power

6500W
Max. input Current

27A
MPPT Range @ Operating Voltage

90-450VDC
Maximum PV Aray Open Circuit Vollage

500 VDC
Maximum Solar Charge Current

100A
Maximum Ac Charge Curent

100A
Maximum Charge Curent

100A
Physical
Packing Dimension,D*W*H(mm)

543*394*204
Net Weight (kg)

10.5
Communication interface

USBIRS232/WIFI/GPRS

Operating Environment
Humidity

5% to 95%6 Relative Humidity(Non-condensing
Operaling Temperature

-10℃ to 50℃
Storage Temperature

-10℃ to 50℃

Junextpower Solis solar 12kw 16KW Single Phase 220V EU Voltage Hybrid Solar Inverter Energy Storage MPPT Inverters 3


Junextpower Solis solar 12kw 16KW Single Phase 220V EU Voltage Hybrid Solar Inverter Energy Storage MPPT Inverters 4

Junextpower Solis solar 12kw 16KW Single Phase 220V EU Voltage Hybrid Solar Inverter Energy Storage MPPT Inverters 5
