6.2kw 6200w Hybrid Touch Screen Solar Inverter with Dual 2.0 Peak Power Support Single Phase Parallel Inverter Junextpower

6.2kw 6200w Hybrid Touch Screen Solar Inverter with Dual 2.0 Peak Power Support Single Phase Parallel Inverter Junextpower
6.2kw 6200w Hybrid Touch Screen Solar Inverter with Dual 2.0 Peak Power Support Single Phase Parallel Inverter Junextpower 6.2kw 6200w Hybrid Touch Screen Solar Inverter with Dual 2.0 Peak Power Support Single Phase Parallel Inverter Junextpower 6.2kw 6200w Hybrid Touch Screen Solar Inverter with Dual 2.0 Peak Power Support Single Phase Parallel Inverter Junextpower

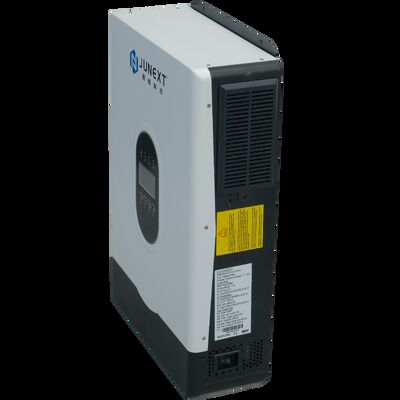

Large Image :  6.2kw 6200w Hybrid Touch Screen Solar Inverter with Dual 2.0 Peak Power Support Single Phase Parallel Inverter Junextpower

Product Details:
Place of Origin: shenzhen
Brand Name: JUNEXT
Certification: ISO、UN38.3、CE、MSDS
Model Number: JN-E-SUN 6.2KVA/48V
Payment & Shipping Terms:
Minimum Order Quantity: Low MOQ
Payment Terms: ,T/T
Supply Ability: 200pcs/day
Contact Now Chat Now

6.2kw 6200w Hybrid Touch Screen Solar Inverter with Dual 2.0 Peak Power Support Single Phase Parallel Inverter Junextpower

Description
Highlight:

6.2kw hybrid solar inverter

,

touch screen solar inverter

,

dual peak power inverter

6.2kw 6200w Hybrid Touch Screen Solar Inverter with Dual 2.0 Peak Power Support Single Phase Parallel Inverter Junextpower


6.2kw 6200w Hybrid Touch Screen Solar Inverter with Dual 2.0 Peak Power Support Single Phase Parallel Inverter Junextpower 0
Pure sine wave Hybrid on&offinverter an feed to grid
Optional local WiFi and GPRS for i0s and AndroidInverteroperation with or without battery
Build-in Lithium battery automatic activation
Build-in 120A MPPT solar charge controller
High PVinput voltage Rang (90~450VDC)
Dual output L1/L2
Optional BMS suitable for 4.2K,6.2K,10.2K,including BMS
User-friendly LcD operation
Enhanced charging power
Batteryindependent design
6.2kw 6200w Hybrid Touch Screen Solar Inverter with Dual 2.0 Peak Power Support Single Phase Parallel Inverter Junextpower 16.2kw 6200w Hybrid Touch Screen Solar Inverter with Dual 2.0 Peak Power Support Single Phase Parallel Inverter Junextpower 2
Product Parameters

New Model

 JN-E-SUN 6.2KVA/48V
Max.PV Power 6500W
Rated Power 6200VA
Max.Charge Current 100A
Battery
Battery Voltage 48VDC
Floating Charge Voltage 54VDC
Overcharge Protection 63VDC
Battery Type

Compatible With GEL,AGM,Lithium battery

Grid Input
Voltage

230VAC
Selectable Voltage Range

170-280VAC(For Personal Computers),90-280 VAC (For Home Appliances)
Frequency Range

50 Hz/60 Hz (Auto sensing)
Efficiency(AC Mode)

98%

Ac Output
AC Voltage Regulation(Batt.Mode)

230 VAC 士 5%
Surge Power

12400VA
Efficiency (Peak)

90%-94%
Transfer Time

10 ms(For Personal Computers);20 ms (For Home Appliances)
Waveform

Pure sine mave

Dual Loads Acoutput
Full Load

6200VA
Maximum Main Load

6200VA
Maximum Second Load(Battery Mode)

2100W
Main Load Cut Off Voltage

44VCD
Main Load Retum Voltage

54VCD

Solar Charger&Ac Charger
Solar ChargerType

MPPT
Maximum PV Array Power

6500W
Max. input Current

27A
MPPT Range @ Operating Voltage

90-450VDC
Maximum PV Aray Open Circuit Vollage

500 VDC
Maximum Solar Charge Current

100A
Maximum Ac Charge Curent

100A
Maximum Charge Curent

100A
Physical
Packing Dimension,D*W*H(mm)

543*394*204
Net Weight (kg)

10.5
Communication interface

USBIRS232/WIFI/GPRS

Operating Environment
Humidity

5% to 95%6 Relative Humidity(Non-condensing
Operaling Temperature

-10℃ to 50℃
Storage Temperature

-10℃ to 50℃

6.2kw 6200w Hybrid Touch Screen Solar Inverter with Dual 2.0 Peak Power Support Single Phase Parallel Inverter Junextpower 3


6.2kw 6200w Hybrid Touch Screen Solar Inverter with Dual 2.0 Peak Power Support Single Phase Parallel Inverter Junextpower 4

6.2kw 6200w Hybrid Touch Screen Solar Inverter with Dual 2.0 Peak Power Support Single Phase Parallel Inverter Junextpower 5
