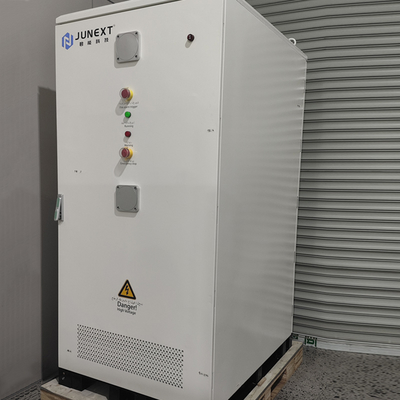

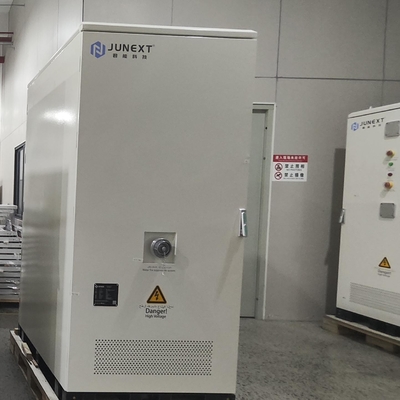

50kw Outdoor Waterproof Cabinet Energy Storage Liquid Cooling System For Lithium Ion Battery

JUNEXT’s Liquid - Cooled Lithium Iron Phosphate Energy Storage System (ESS) is a next - generation power storage solution, crafted to provide stable and efficient energy retention for numerous applications. A standout characteristic of this system is its Extreme - Temp Resilient Power Storage Mechanism, which ensures it maintains optimal performance even in the most challenging temperature conditions, from sub - zero cold to sweltering heat.

At the heart of this sophisticated system lies a Liquid - Cooled Battery Cell Array. It leverages advanced coolant circulation technology to keep the batteries within their ideal operating temperature range at all times. This not only maximizes the energy efficiency of the cells but also significantly prolongs their lifespan, making the system an excellent choice for meeting the strict energy storage demands of various industries and user types.

This Liquid - Cooled Battery ESS is equipped with high - capacity battery cells of 3.2V/314Ah. This ample cell capacity ensures sufficient energy storage to satisfy the needs of residential users, commercial establishments, and industrial facilities alike. In terms of voltage compatibility, it supports AC nominal voltages of 220/380V, 230/400V, and 240/415V, along with a DC nominal voltage of 640V. This wide voltage range enables seamless integration with a diverse array of power systems, enhancing its practicality.

In addition to its strong performance capabilities, the Liquid - Cooled Battery ESS has an impressive Charge/Discharge Temperature tolerance, ranging from - 20℃ to 55℃. This allows it to operate reliably even in harsh environmental conditions, such as deserts or cold plateaus. Moreover, it holds an IP54 protection rating, which effectively prevents dust accumulation and water splashes, thereby increasing its durability and reducing the need for frequent maintenance.

Whether used for emergency backup power to prevent downtime, peak shaving to lower electricity costs during high - demand periods, or integrating with renewable energy sources like solar and wind to ensure a steady power supply, this Liquid - Cooled Battery ESS proves to be a flexible and reliable energy storage solution. It consistently delivers exceptional performance and efficiency, and its innovative design and advanced technologies make it the ideal choice for applications that require a high - quality liquid - cooled energy storage system.

Parameter	Specification
IP Grade	IP54
Cycle Life	≥8000 cycles @ 25℃±2℃, 0.5C, 70% SOH
Dimension (LxWxH)	1525 x 1205 x 2202 mm
Cell Capacity	3.2V/314Ah
Nominal Voltage	DC: 640V
Weight	2500kg ± 100KG
Rated Output Power	50KW
AC Connection Type	3L/N/PE
Charge/Discharge Temperature	-20℃ to 55℃
Series - Parallel Mode	1P200S

• Product Name: Liquid Cooling Battery ESS
• Rated Output Power: 50KW
• Weight: 2500kg±100KG
• Nominal Voltage:
  • DC: 640V
  • AC: 220/380V; 230/400V; 240/415V
• Rated Energy: 200KWh

The JUNEXT Liquid Cooling Battery ESS (Model: ESS - 50/200 - 3P - N - A) is an advanced Temperature - Managed Battery Storage System, specifically designed to cater to the needs of various application scenarios. With its creative design and premium features, this product is set to revolutionize the way energy is stored and utilized in modern energy infrastructure.

Produced in Shenzhen, a global hub for advanced technology innovation and manufacturing, the JUNEXT ESS - 50/200 - 3P - N - A is a reliable and high - quality energy storage system. It has obtained UN38.3, MSDS, and CE certifications, which serve as strong proof of its safety, compliance with international standards, and overall quality.

One of its most notable features is its exceptional Cycle Life of ≥8000 cycles when operating at 25℃±2℃, 0.5C, and 70% SOH. This long cycle life gives the battery ESS excellent durability and longevity, making it a cost - effective and eco - friendly energy storage solution for long - term use, reducing the total cost of ownership for users.

The 1P200S Series - Parallel Configuration of the system provides great flexibility and scalability. This allows users to customize the system according to their unique energy storage needs and project requirements, whether it is for a small - scale residential project, a medium - sized commercial facility, or a large - scale industrial complex.

Equipped with state - of - the - art Liquid Cooling technology, this ESS ensures efficient heat dissipation, even during high - load operations. This stable temperature management guarantees optimal performance, making it highly suitable for high - demand applications and harsh working environments where temperature variations are common.

Thanks to its IP54 protection rating, the JUNEXT ESS - 50/200 - 3P - N - A is well safeguarded against dust ingress and water splashes. This protection ensures that the system remains reliable and has a long service life, regardless of the various operating conditions it may encounter, from dry deserts to humid coastal areas.

Furthermore, its wide Charge/Discharge Temperature range of - 20℃ to 55℃ greatly enhances its adaptability. It can perform well in a wide variety of climates, from cold northern regions with long winters to hot and humid tropical areas, making it a versatile choice for global users with diverse environmental conditions.

No matter if it is used for residential energy storage to reduce household electricity costs and increase energy independence, commercial applications such as powering shopping malls, office buildings, or hotels, or large - scale industrial projects like factory power backup, grid peak regulation, or renewable energy integration, the JUNEXT Liquid Cooling Battery ESS provides a reliable, efficient, and sustainable solution for all energy storage needs. When it comes to finding a top - quality Temperature - Managed Battery Storage Solution that meets your specific energy storage requirements, JUNEXT is the brand you can trust.

JUNEXT Liquid Cooling Battery ESS (Energy Storage Unit) is a cutting-edge solution designed for a wide range of application occasions and scenarios. With its innovative technology and high performance, this Liquid-Cooled Storage Cell Array is ideal for various industries and settings.

One key application of the JUNEXT ESS-50/200-3P-N-A is in industrial settings where a reliable power source is crucial. The refrigerated power storage unit is perfect for manufacturing facilities, data centers, and other industrial sites that require a stable power supply to operate efficiently.

Another important application scenario for the Liquid Cooling Battery ESS is in renewable energy systems. With its high rated output power of 50KW and operating voltage range of DC 500V to 730V, this energy storage unit is perfect for storing excess energy generated from solar panels or wind turbines.

Furthermore, the JUNEXT ESS-50/200-3P-N-A is also suitable for use in commercial buildings and residential complexes. Its compact dimensions (1525*1205*2202mm) make it easy to integrate into existing spaces without taking up too much room. The certification of UN38.3, MSDS, and CE ensures the safety and quality of this product for use in various environments.

With a cycle life of ≥8000 times at 25℃±2℃, 0.5P, 70%SOH, this Liquid Cooling Battery ESS is a durable and long-lasting solution for energy storage needs. Its weight of 2500kg±100KG makes it easy to transport and install, further enhancing its versatility and usability.

Whether you need a reliable power backup system for your industrial facility, a sustainable energy storage solution for your renewable energy project, or a compact and efficient power storage unit for your commercial or residential building, the JUNEXT Liquid Cooling Battery ESS-50/200-3P-N-A from shenzhen is the perfect choice. Trust in the advanced technology and superior performance of this innovative product to meet your energy storage needs effectively and efficiently.
